JGX-1276 Series
In the modern industrial field, with the increasing complexity and precision of equipment, the requirements for equipment stability and reliability are becoming increasingly stringent. In order to meet this demand, JGX-1276 series shock absorbers came into being, and with their excellent performance and wide applicability, they have become an indispensable key component of many industrial equipment.
The JGX-1276 series is made of high-quality stainless steel, which has excellent corrosion and abrasion resistance, allowing it to maintain stable performance in harsh working environments. In addition, stainless steel has good mechanical strength and ductility, which ensures that the shock absorber does not break or deform when subjected to heavy loads. The choice of this material not only ensures the quality and durability of the product, but also provides a strong guarantee for its application in various harsh environments.
The JGX-1276 series also plays an important role in some special areas. For example, in the military sphere, it can be used for vibration damping and stabilization of equipment and weapon systems; In the aerospace field, it can be used for vibration damping and stability control of aircraft; In offshore engineering, it can be used for vibration damping and stabilization of offshore platforms and ships. The applications in these special fields fully demonstrate the excellent performance and wide applicability of JGX-1276 series shock absorbers.
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 278 | 32.0 | 716 | 352 |
| 2 | JGX-1278D-233B | 233 | 38.1 | 531 | 249 |
| 3 | JGX-1278D-220B | 220 | 43.2 | 461 | 208 |
| 4 | JGX-1278D-176B | 176 | 48.8 | 343 | 147 |
| 5 | JGX-1276D-149B | 149 | 59.9 | 256 | 103 |
| 6 | JGX-1276D-130B | 130 | 74.7 | 196 | 72 |
| 7 | JGX-1276D-115B | 115 | 85.9 | 154 | 54 |
| 8 | JGX-1276D-92B | 92 | 102.6 | 111 | 37 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 197.4 | 44.7 | 405 | 177 |
| 2 | JGX-1278D-233B | 165.7 | 52.8 | 298 | 126 |
| 3 | JGX-1278D-220B | 156.6 | 61.0 | 263 | 105 |
| 4 | JGX-1278D-176B | 124.8 | 68.6 | 194 | 74 |
| 5 | JGX-1276D-149B | 106.6 | 84.8 | 144 | 51 |
| 6 | JGX-1276D-130B | 93.1 | 105.7 | 110 | 37 |
| 7 | JGX-1276D-115B | 81.7 | 121.9 | 88 | 28 |
| 8 | JGX-1276D-92B | 63.6 | 144.8 | 62 | 19 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | JGX-1276D-278B | 152.0 | 33.0 | 221 | 221 |
| 2 | JGX-1278D-233B | 124.8 | 40.1 | 156 | 156 |
| 3 | JGX-1278D-220B | 115.7 | 45.2 | 130 | 130 |
| 4 | JGX-1278D-176B | 93.1 | 50.8 | 91 | 91 |
| 5 | JGX-1276D-149B | 61.3 | 56.9 | 60 | 60 |
| 6 | JGX-1276D-130B | 45.4 | 77.7 | 46 | 46 |
| 7 | JGX-1276D-115B | 34.1 | 90.9 | 33 | 33 |
| 8 | JGX-1276D-92B | 22.7 | 107.7 | 23 | 23 |
* Splint material *
Stainless Steel or Aluminum can be selected
* Surface treatment of aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Product Tags:
|
|

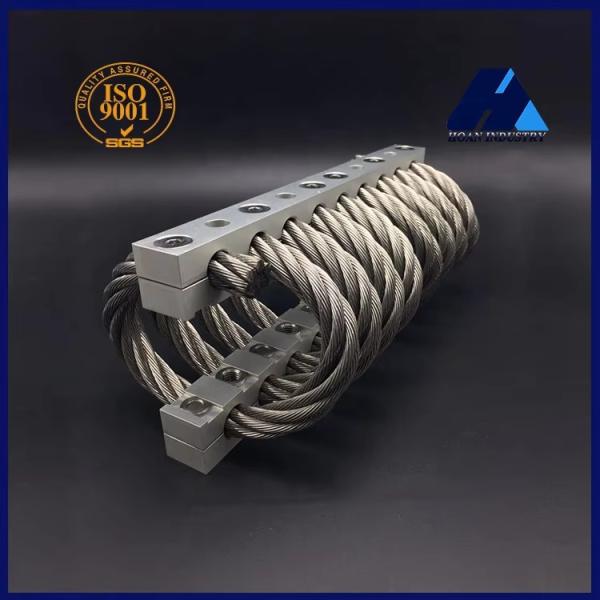

JGX-1276D-176B Stainless Steel Wire Rope Vibration Isolator for Industrial Equipment Stability and Reliability Images
|
